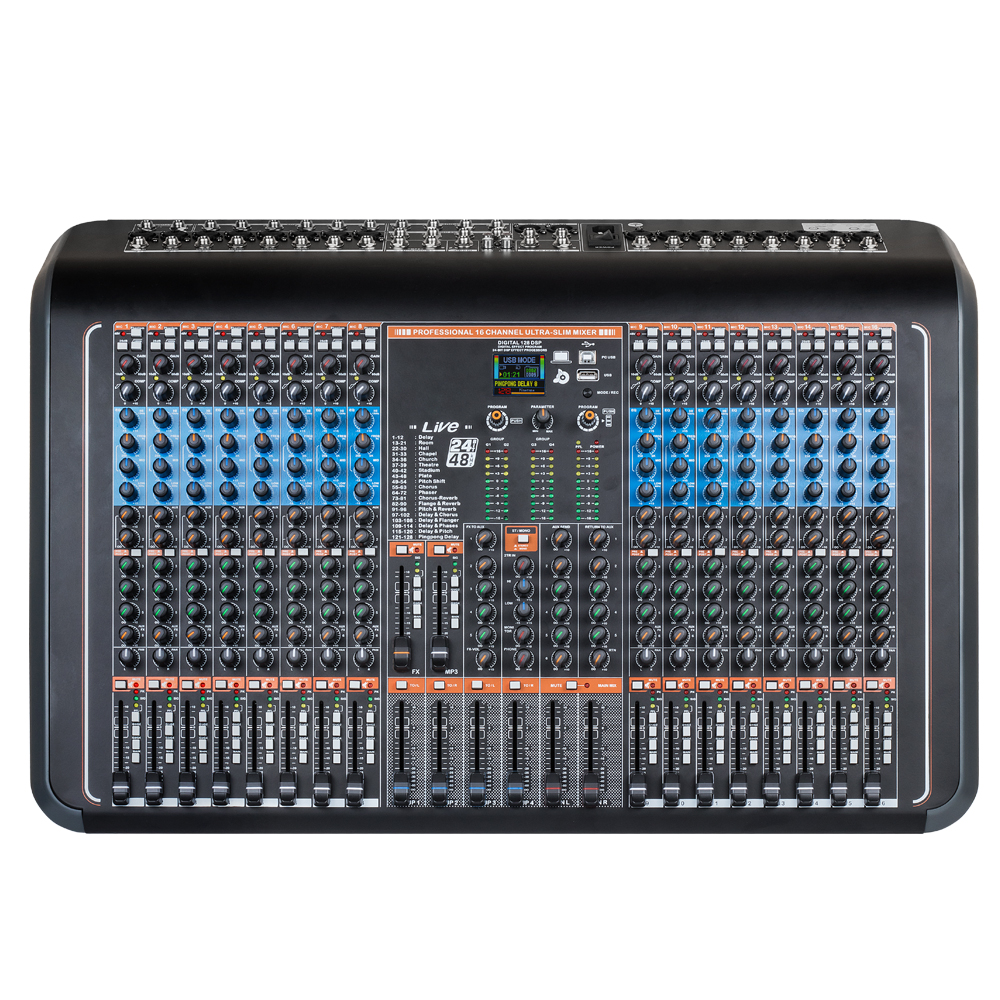

H-ES16

128 DSP with ultra slim design, fashionable appearance，specially add. IF scanning function, With Blue tooth, MP3 player and recording function, with insert , Comp. interface, with 6 Aux input / 4 group output , very strong function to meet your all needs in any situation. There are 12 channels, 16channels & 22 channels selectable. It is really a good choice for you.
Availability:
Quantity:
Inquire Add to Basket

H-ES16
H-ES16
H-ES16
H-ES16

  • H-ES16

  • Evelyn

Product Description

Specification:

    Maximum Levels:    Mic. input              +22dBu

    THD:     ﹤0.005%

    Noise:  -86 dBu

    S/N  Ratio:     Line / Mic.input: 82db

    Attenuation(Crosstalk): -82 dBu

    Frequency response:  20Hz-40Khz     +0dB/-1dB

    Impedances: 2.5 KΩ

    EQ:  High Shelving :    ±15db@12kHz

           Mid sweeping:         ±15db@250-5kHz

           Mid Shelving:      ±15db

          Low shelving:      ±15db@80Hz

    Hi Pass Filter:  18db/octave,-3db@100Hz
